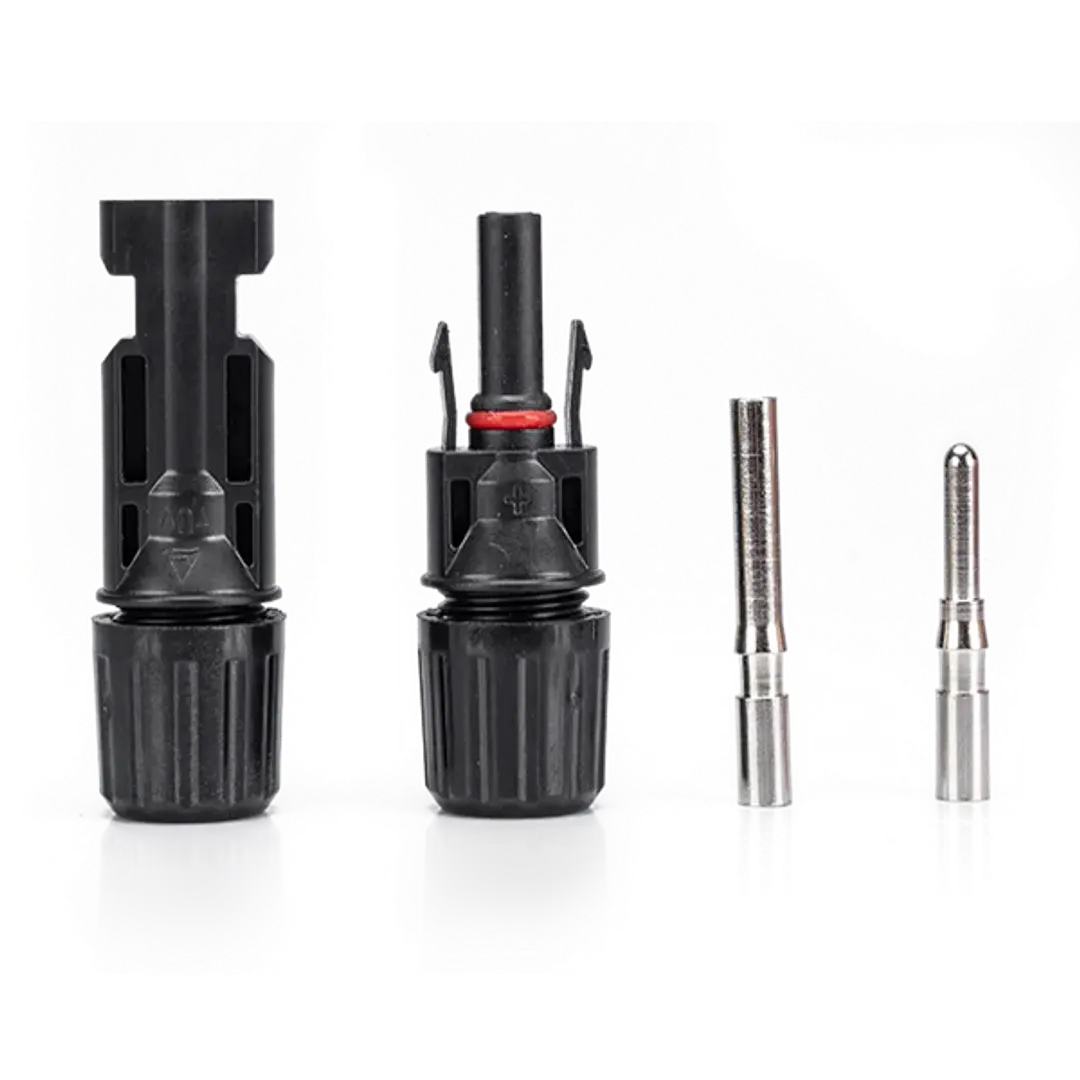

Conectores Par MC4

＞＞＞High Performance

• Contact Resistance below 0.20mΩ
• Handles current up to 30A

＞＞＞Safety

• TUV and UL certification

• Slight heat rising at rated current
• IP 68 water proof
• UL94-V0 flame proof

• Strong pulling force capability

＞＞＞Warrantly

• 20 years

＞＞＞Data Sheet

• Model: ES-MC4-F
• Rated Voltage: TUV 1500V DC / UL 600V DC
• Rating Current: 20-30A
• Cable Size: 2.5-4.0-6.0, 10-12-14AWG
• Pin OD: 4.0mm
• Proof Voltage: TUV 1500V AC, 1 min

• Pollution Degree: 2
• Protection Class: Class II
• Contact Material: Copper. tin, plated
• Withdrawal Force: ≥50N
• Insertion Force: ≤50N
• Temperature Range: -40 to 85℃
• Flame class: UL94-V0
